This guide will demonstrate how to connect the WP8x6 Wi-Fi Cordless Phone to Wi-Fi Network, set Wi-Fi band and how to use WP8x6 QR code to configure the Wi-Fi.
Finding your Wi-Fi connection (SSID)

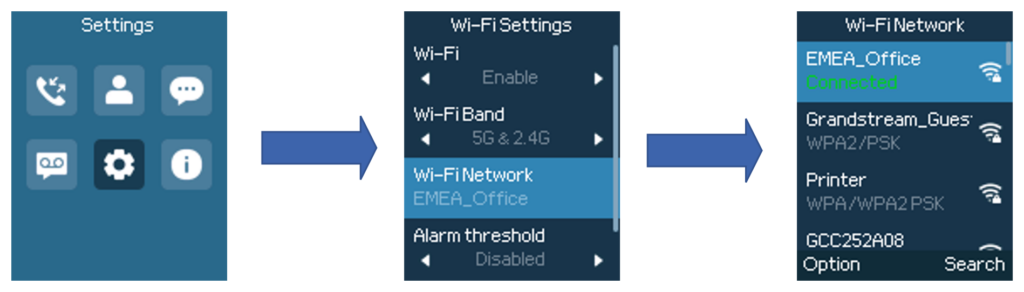

On LCD menu, press Menu key and navigate to Settings → Wi-Fi Settings → Wi-Fi Network.

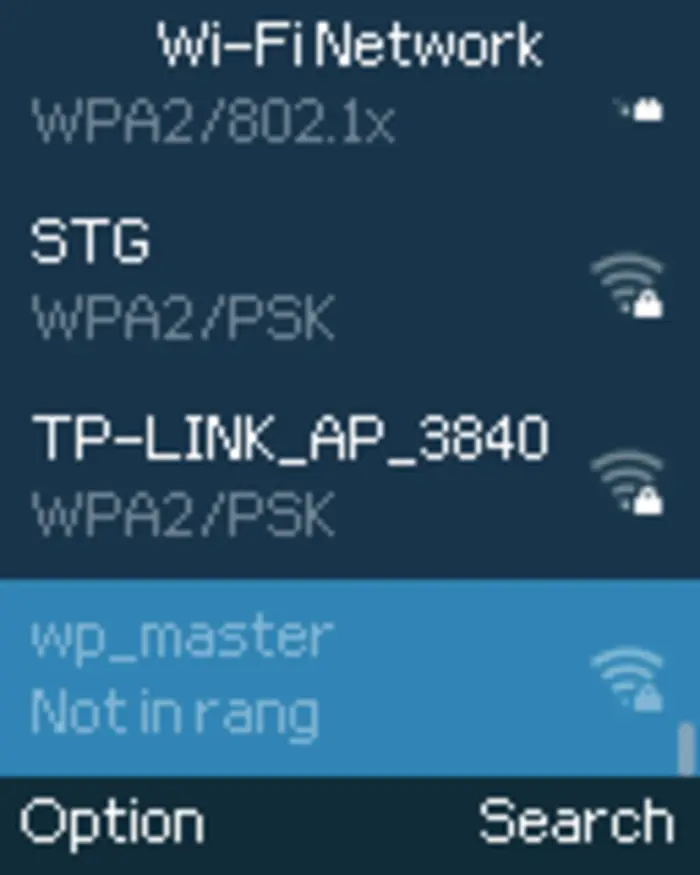

A list of Wi-Fi networks will be displayed.
Select your Wi-Fi SSID set on your Modem, Router or Access Point.
Enter the WiFi Password when prompted.
Enabling your Wi-Fi connection
In case your Wi-Fi was set to Disable you can set Wi-Fi to Enable and navigate to Wi-Fi Network. A list of Wi-Fi networks will be displayed.
Wi-Fi Band Configuration
If 5GHz and 2.4GHz are both available, the handset will use 5GHz, but it may switch to 2.4GHz if the signal of 5GHz is poor.

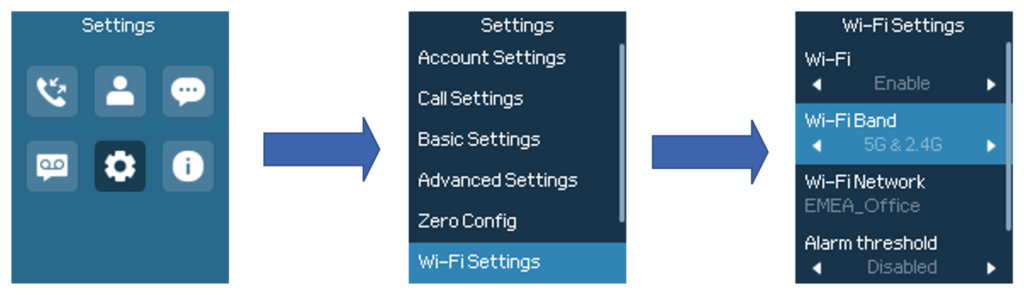

Users may also specify the Wi-Fi Band to fix it or to keep it Dual Band (Automatic) under Settings ? Wi-Fi Settings ? Wi-Fi Band.
Configuring your Wi-Fi Network via Mobile Browser
Go to Settings -> Quick Network Configuration -> Via Mobile Browser.

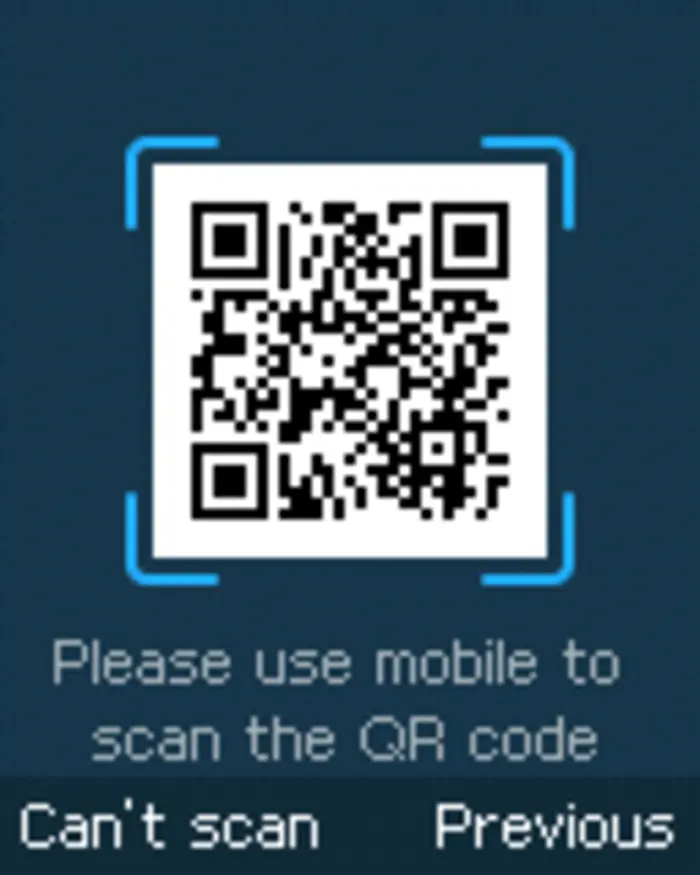

Scan the QR code using your mobile device.
If you are unable to scan the QR code, select the option - can't scan for the Phone to display the SSID that you can connect to.

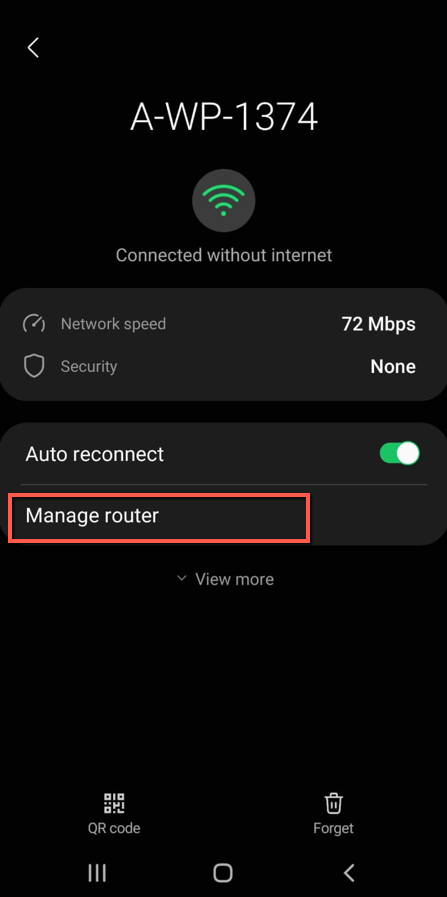

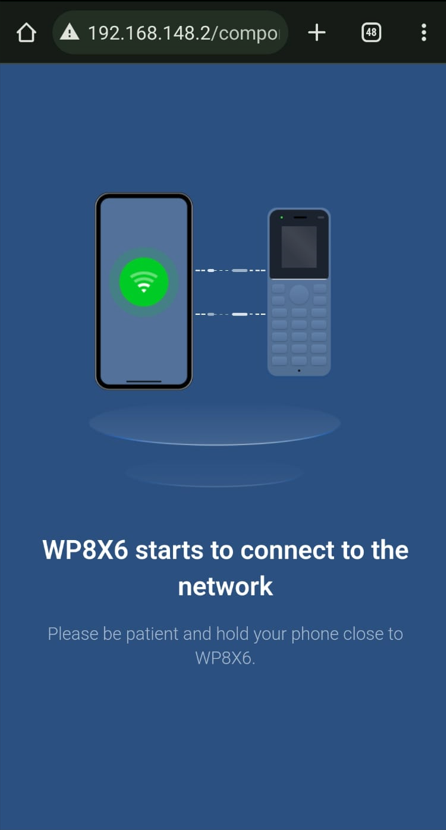

Once scanned, it will redirect you to the page on your phone to manage router option.

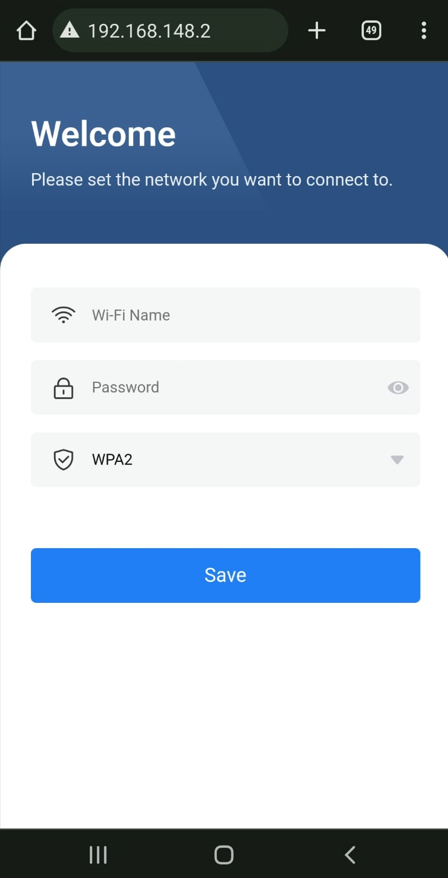

From there you can connect the WP8x6 to a Wi-Fi Network. by entering the SSID name and password.
For most Devices, we will pre-configure the connection if Wi-Fi SSID and Password were provided. In some cases, you will have to reconnect manually even if pre-configured.
